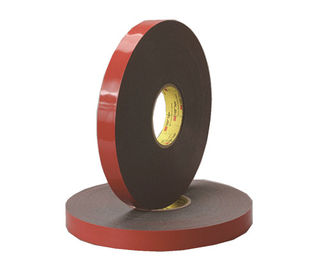

3M5915P VHB Acrylic Foam Tape 0.4mm Thickness

3M5915P VHB Acrylic Foam Tape 0.4mm Thickness

    • 3M5915P VHB Acrylic Foam Tape 0.4mm Thickness
    • 3M5915P VHB Acrylic Foam Tape 0.4mm Thickness
  • 3M5915P VHB Acrylic Foam Tape 0.4mm Thickness

    Product Details:

    Place of Origin: California, United States
    Brand Name: 3M
    Model Number: 3M5915P

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Rolls
    Price: USD 100-900 / Roll
    Packaging Details: Standard carton box packing or Shrink Pack or As Customer's Request
    Delivery Time: Within 7 working days after received the payment
    Payment Terms: T/T,Western Union,Paypal
    Supply Ability: 500 Roll/Rolls per Day
    Contact Now
    Detailed Product Description
    Material: VHB Adhesive Type: Pressure Sensitive, Closed Cell Acrylic
    Adhesive Side: Double Sided Feature: Waterproof
    Adhesive: Acrylic Use: Masking
    Thickness: 0.4mm Width: 1-600mm
    Longth: 33M

    3M VHB Tape 5915(P) is a very conformable, double-sided, pressure-sensitive, closed-cell acrylic foam tape with a paper liner. Provides handling convenience, cushioning, damping, and impact resistance.



    1)Features and Benefits
    • High strength and durable
    • Clean appearance
    • Ideal for electronics assembly applications
    • Used for thin applications
    • UL 746C listed
    • Easy handling/die cuttable





    2)Suggested Applications:
    • Screen Bonding
    • Rigidizer Bonding





    3)Product Description:


    3M VHB Tapes provide the convenience and simplicity of a tape fastener and are ideal for use in many interior and exterior bonding applications. In many situations, they can replace rivets, spot welds, liquid adhesives and other permanent fasteners.


    These 3M VHB Tapes are made with acrylic foam which is viscoelastic in nature. This gives the foam energy absorbing and stress relaxing properties which provides these tapes with their unique characteristics. The acrylic chemistry provides outstanding durability performance.


    These tapes utilize a variety of specific foam, adhesive, color and release liner types to provide each product/family with specific features. These features can include adhesion to specific or a broad range of materials, conformability, high tensile strength, high shear and peel adhesion, resistance to plasticizer migration, and UL746C recognition. All 3M VHB Tapes have excellent durability and excellent solvent and moisture resistance.


    Note: All 3M VHB Tapes should be thoroughly evaluated by the end user under actual use conditions with intended substrates to determine whether a specific tape is fit for a particular purpose and suitable for user’s method of application, especially if expected use involves extreme environmental conditions or high dead load stress.



    Product Attributes:

    Adhesion to HSE High
    Adhesion to LSE Medium
    Adhesive Type Modified Acrylic
    Application Antenna Bonding, Battery Bonding, Bezel Bonding, Case Assembly, Cover Lens Bonding, Display Bonding, Electronic Component Bonding, Logo Bonding, Touch Panel Bonding, Wire and Cable Clip Attachment
    Application Category Bonding
    Brand VHB
    Foam Conformability Very Conformable
    Foam Type Closed Cell Acrylic
    Liner Color White, White with Red 3M VHB Print
    Liner Thickness 4.0 Milli-inch (mil)
    Liner Type Polycoated Kraft Paper
    Product Form Roll
    Product Series 5915P
    Solvent Resistance High
    Substrate HSE (Glass, Metal), M/LSE (ABS, Powder Paint), MSE (PC, Acrylic, PC/ABS)
    Tape Color Black
    Total Tape Thickness without Liner 16.0 mil
    Total Tape Thickness without Liner (metric) 0.40 mm

    3M5915P VHB Acrylic Foam Tape 0.4mm Thickness

    We could cut to any roll width according to the customer’s requirement. And we account the price by per square meter.



    If you have interesting of cooperation with us, we could send you some tape samples for testing use. And please give me the address to send the samples.
