| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | PF |
| Certification: | ROHS |
| Model Number: | PF-006 |
| Minimum Order Quantity: | 50 Square meters |
|---|---|
| Price: | USD 2.5~3.5 / Square meter |
| Packaging Details: | rolls in shrinkage packing, and put in ctns., and then pack in pallets. |
| Delivery Time: | 3~7 working days |
| Payment Terms: | TT,WESTERN UNION,PAYPAL |
| Supply Ability: | 10000000 Square meters / week |
| Type: | Insulation Tape | Material: | Polyimide Film |
|---|---|---|---|
| Application: | High Temperature | Rated Voltage: | 6kv |
| Tensile Strength: | 140N | Adhesive: | Silicone |
| Thinkness: | 0.06mm | Color: | Amber |
| Adhesion Strength: | 6N | Temperature Resistance: | 260C |

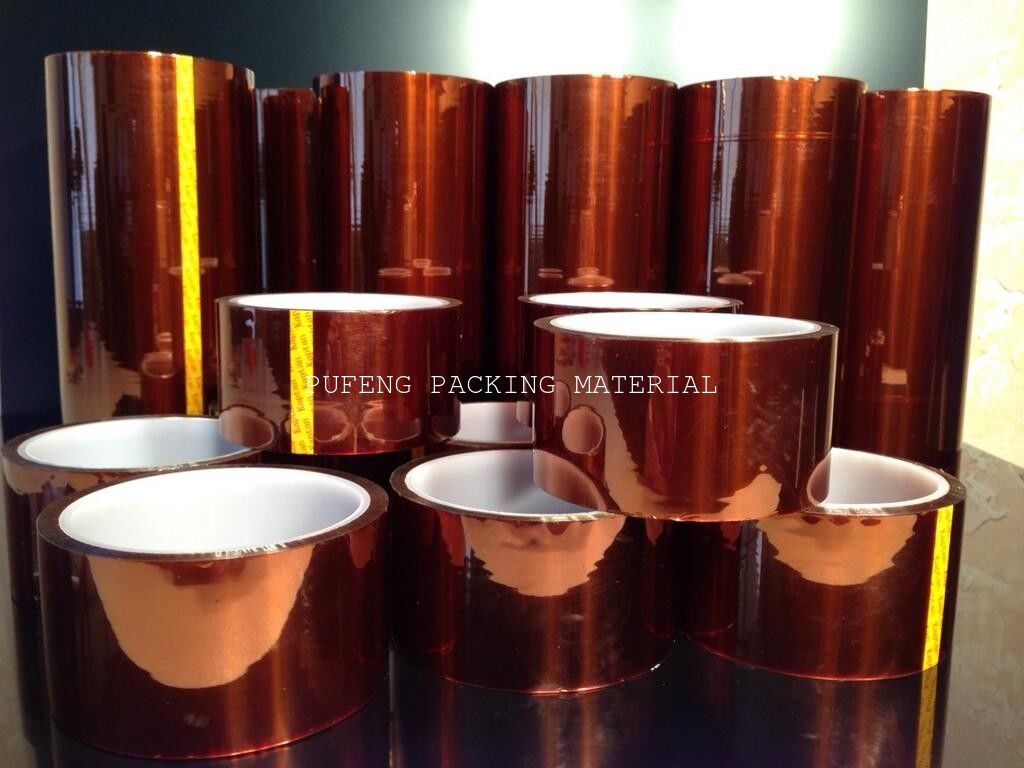

polyimide tape / Kapton Tape:
1) Material: polyimide film
2) Imported organic silicon pressure - sensitive adhesiveis introduce.
3) High temperature resistant
4) Acid and alkaline resistant
5) Solvent resistant
6) Electrical insulation (Grade H)
7) Radiation protection
8) Applicable for the protection of PCB gold finger during the wave
soldering under high temperature, high-class electricals and motor insulation
and Li batteries,fixation,etc.
|
Items |
Datas |
|
Backing |
Polyimide film |
|
Adhesion |
Silicone |
|
Color |
Amber |
|
Thickness (mm) |
0.06 |
|
Length (m) |
33M |
|
Tensile Strength (N/25mm) |
≥140 |
|
Elongation (%) |
≥40 |
|
Breakdown strength (N/25mm) |
≥150 |
|
Voltage resistance (KV) |
6 |
|
Adhesion (N/25mm) |
6 |
polyimide kaptone tape is made by coating silicone or acrylic glue on polyimide
backing stand 260 celsius & 5KV
High temperature & insulation works
3D printing , PCB making
Electronis masking protection
I We slit tape into customized sizes.
1 We got stacks here. seal it with packing tape
2 check the stack make sure it tight and steady
3 then we prepare the cartons and put tapes into cartons
I Custom make cartons
Ready Carton 460X350X360mm Offer customized cartons
II Inset separetion cards Separation cards is necessary for fix the tape avoid move during transit
III Strapping the carton
Using Strapping belt to reinforce the carton package
Pallet size: 1.1X1.1M or 1.2X 1.1M
How much a container can take ?
Take HS-201#25 (0.06mm thick) as example
size: 500mm X 33M (about 16.5 square meter )
1 pallet = 375 rolls
1 20ft container = 10 pallets = 3750 rolls (61875 M2)
We could cut to any roll width according to the customer’s requirement. And we account the price by per square meter.
If you have interesting of cooperation with us, we could send you some tape samples for testing use. And please give me the address to send the samples.
