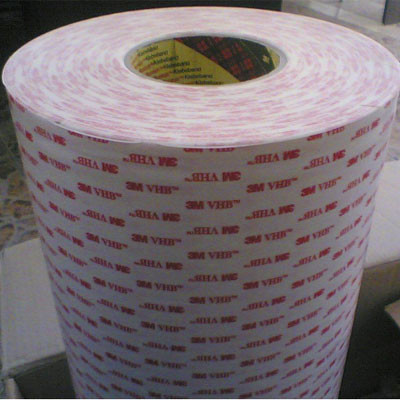

0.64mm thickness 610*33m gery color 3M4936 double sided adhesive acrylic VHB foam tape

0.64mm thickness 610*33m gery color 3M4936 double sided adhesive acrylic VHB foam tape

    • 0.64mm thickness 610*33m gery color 3M4936 double sided adhesive acrylic VHB foam tape
    • 0.64mm thickness 610*33m gery color 3M4936 double sided adhesive acrylic VHB foam tape
  • 0.64mm thickness 610*33m gery color 3M4936 double sided adhesive acrylic VHB foam tape

    Product Details:

    Place of Origin: Minnesota, United States
    Brand Name: 3M
    Certification: ROHS
    Model Number: 3M 4936

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 ROLL
    Price: US $700~880 / ROLL
    Packaging Details: Standard package.
    Delivery Time: Within 7 working days after received the payment
    Payment Terms: T/T; WESTERN UNION
    Supply Ability: 1000 ROLLS per WEEK
    Contact Now
    Detailed Product Description
    Material: VHB Adhesive: Acrylic
    Design Printing: No Printing Use: Masking
    Adhesive Type: Pressure Sensitive Adhesive Side: Double Sided
    Feature: Waterproof Usage: Body Side Molding
    Thickness: 0.1mm~3mm Width: 610mm
    Length: 33m

    3M 4936 VHB™ Tape



    3M™ VHB™ Tape 4936 is a conformable, double-sided, pressure-sensitive, closed-cell acrylic foam tape with a paper liner.



    • 25 mil thick
    • Bonds high and medium surface energy substrates
    • Provides handling convenience, cushioning, damping, and impact resistance
    • Plasticizer resistant
    • UL listing 746C
    Tape Thickness w/o liner mils (mm) 25 w/o liner mil (0.64 mm)
    Adhesive Type Multi-purpose Acrylic
    Temperature Resistance: Minutes to Hours °F (°C) 300°F (149°C)
    Temperature Resistance: Days to Weeks °F (°C) 200°F (93°C)
    Solvent Resistance High
    Relative Adhesion HSE High
    Relative Adhesion LSE Medium
    Liner Type A-3 mil 54# Densified Kraft Paper
    Restocking fee 20% restocking fee




    3M 4936F VHB™ Tape



    A conformable, double-sided, pressure-sensitive, closed-cell acrylic foam tape with a paper liner.



    • 25 mil thick
    • Bonds high and medium surface energy substrates
    • Provides handling convenience, cushioning, damping, and impact resistance
    • Plasticizer resistant
    • UL listing 746C





    Tape Thickness w/o liner mils (mm) 25 w/o liner mil (0.64 mm)
    Adhesive Type Multi-purpose Acrylic
    Temperature Resistance: Minutes to Hours °F (°C) 300°F (149°C)
    Temperature Resistance: Days to Weeks °F (°C) 200°F (93°C)
    Solvent Resistance High
    Relative Adhesion HSE High
    Relative Adhesion LSE Medium
    Liner Type B-5 mil Clear Polyethylene Film





    Products Specification:

    Use the right tape thickness: The necessary thickness of tape depends on the rigidity of substrates and their flatness irregularity. While the 3M™ VHB™ Tapes will conform to a certain amount of irregularity, they will not flow to fill gaps between the materials. For bonding rigid materials with normal flatness, consider use of tapes with thickness of 45 mils (1.1 mm) or greater. As the substrate flexibility increases thinner tapes can be considered.
    Use the right amount of tape: Because 3M™ VHB™ Tapes are viscoelastic by nature their strength and stiffness is a function of the rate at which they are stressed. They behave stronger with relatively faster rate of stress load (dynamic stresses) and will tend to show creep behavior with stress load acting over a long period of time (static stresses). As a general rule, for static loads, approximately four square inches of tape should be used for each pound (57 cm2 of tape per kg) of weight to be supported in order to prevent excessive creep. For dynamic loads, the dynamic performance characteristics provided on page 4 should be useful, factoring in the appropriate safety factors.





    0.64mm thickness 610*33m gery color 3M4936 double sided adhesive acrylic VHB foam tape0.64mm thickness 610*33m gery color 3M4936 double sided adhesive acrylic VHB foam tape

    We could cut to any roll width according to the customer’s requirement. And we account the price by per square meter.



    If you have interesting of cooperation with us, we could send you some tape samples for testing use. And please give me the address to send the samples.
