3M79 Glass Cloth Electrical Tape

Home Products Tape (3M, TESA, NITTO, SONY, KAPTON)

3M79 Glass Cloth Electrical Tape

Product Details:

Place of Origin:	Florida, United States
Brand Name:	3M
Model Number:	3M79

Payment & Shipping Terms:

Minimum Order Quantity:	1 Rolls
Price:	USD 100-1000/ Roll
Packaging Details:	Standard carton box packing or Shrink Pack or As Customer's Request
Delivery Time:	Within 7 working days after received the payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	500 Roll/Rolls per Day

Contact Now

Detailed Product Description

Material:	Glass Cloth	Adhesive Type:	Pressure Sensitive
Adhesive Side:	Single Sided	Feature:	Heat-Resistant
Adhesive:	Silicone	Use:	Masking
Width:	1020mm

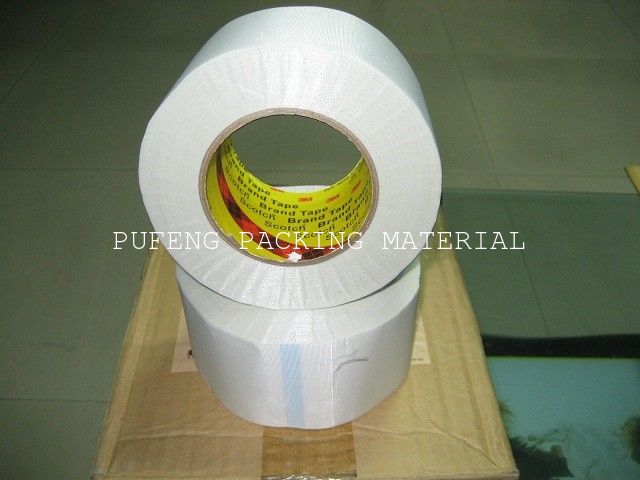

3M79 Glass Cloth Electrical Tape

This is a 7 mil woven glass cloth tape with an acrylic pressure sensitive adhesive sold on a 3 in paper core in bulk, and is for electrical OEM customers. UL Recognized 150°C. Printable.

Applications

• Used in a variety of coil/transformer and motor applications, including an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold down, end turn and lead anchor and connection
• Used for banding and strapping applications up to 150°C

Specifications

3M™ Glass Cloth Electrical Tape 79 is a glass cloth electrical tape with acrylic pressuresensitive adhesive. The tape shall be white and 7 mils (0,178 mm) thick. The tape shall be coated on one side with pressure-sensitive adhesive, which shall not require heat,
moisture or other preparation prior to or subsequent to application. The adhesive coating shall be smooth and uniform and be free of lumps and bare spots. There shall be no separator between adjacent layers of the roll. The tape shall perform at a temperature of 302° F (150° C) without loss of physical or electrical properties.

Typical Properties
Electrical

Property (Test Method) (ASTM D1000 unless noted)	Typical Value US units (metric)
Dielectric Breakdown	3000 V
Breaking Strength	150 lbs/in (262 N/10 mm)
Insulation Resistance	2.7 x 102 megohms
CTI Material Group	1
Electrolytic Corrosion Factor	0.9
