3M82310 3M82315 3M82320 Electronic Polyester Double Coated Tape

Product Details:

Place of Origin:	California, United States
Brand Name:	3M
Model Number:	3M82310 3M82315 3M82320

Payment & Shipping Terms:

Minimum Order Quantity:	1 Rolls
Price:	USD 100-900 / Roll
Packaging Details:	Standard carton box packing or Shrink Pack or As Customer's Request
Delivery Time:	Within 7 working days after received the payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	500 Roll/Rolls per Day

Contact Now

Detailed Product Description

Material:	Polyester	Adhesive Type:	Pressure Sensitive, Modified Acrylic
Adhesive Side:	Double Sided	Feature:	Waterproof
Adhesive:	Acrylic	Use:	Masking
Thickness:	0.1mm/0.15mm/0.2mm

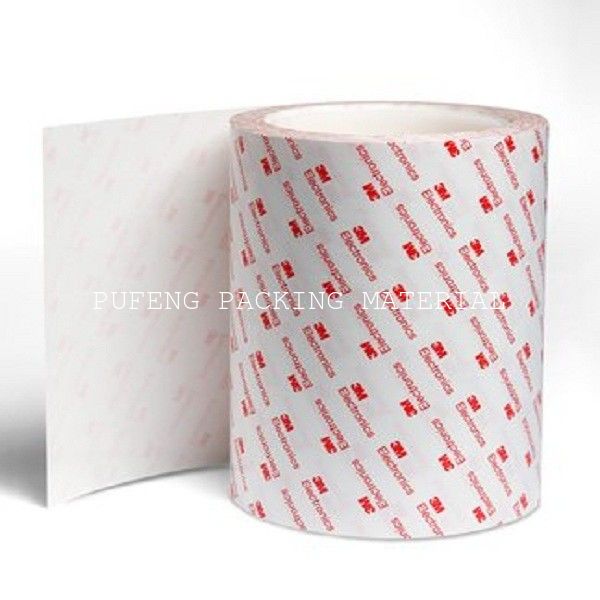

3M82310 3M82315 3M82320 Electronic Polyester Double Coated Tape

3M Double Sided Tape 82315 is a 0.15 mm double sided tape used for attachment or bonding in the electronics' industry. Its flexible acrylic adhesive provides both high performance at a wide temperature range and excellent adhesion to many substrates.

Features and Benefits

Clear polyester carrier provides dimensional stability and improved handling during die-cutting and lamination compared to adhesive transfer tapes
High tack flexible adhesive provides good temperature and chemical resistance and withstands tough application environments
No adverse effect on the bond line after exposed to 100% relative humidity at 100 degree F (38 degree C)
Adhesive is resistant to oxidation and ozone when exposed to air or ultraviolet light

3m82315 Product Attributes

Application	Bezel Bonding, Cover Lens Bonding, Display Bonding, Electronic Component Bonding, Touch Panel Bonding
Application Category	Bonding
Backside Adhesive Thickness	2.75 mil
Backside Adhesive Thickness (metric)	0.069 mm
Backside Adhesive Type	420 Acrylic, Flexible Acrylic
Carrier Color	Clear
Carrier Material	Polyester
Carrier Thickness	0.50 mil
Carrier Thickness (metric)	0.012 mm
Faceside Adhesive Thickness	2.75 mil
Faceside Adhesive Thickness (metric)	0.069 mm
Faceside Adhesive Type	420 Acrylic, Flexible Acrylic
Liner Color	White with 3M Electronics Print
Liner Thickness	5.2 Milli-inch (mil)
Liner Thickness (metric)	0.13 mm
Liner Type	Polycoated Kraft
Operating Temperature Range (Celsius) Long Term	(Days-Weeks) 120 Degrees C
Operating Temperature Range (Celsius) Short Term	(Minutes-Hours) 149 Degrees C
Product Series	82315
Substrate	Glass, HSE Plastics, Metals
Total Tape Thickness without Liner	6.0 Mil
Total Tape Thickness without Liner (metric)	0.15 mm
