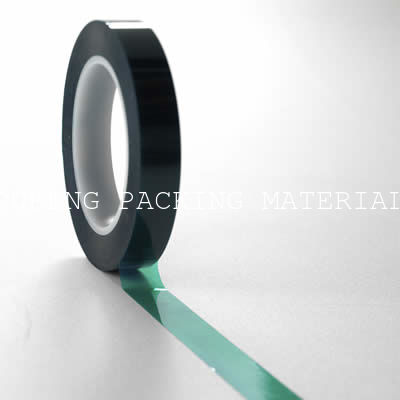

3M851 Greenback Printed Circuit Board Tape

3M851 Greenback Printed Circuit Board Tape

3M851 Greenback Printed Circuit Board Tape

Product Details:

Place of Origin: Minnesota, United States
Brand Name: 3M
Model Number: 3M851

Payment & Shipping Terms:

Price: US $0.3 - 5/ Piece
Packaging Details: Standard package.
Delivery Time: Within 7 working days after received the payment
Supply Ability: 100000 Piece/Pieces per Day
Minimum Order Quantity: 1000 Piece/Pieces
Contact Now
Detailed Product Description
Material: Silicone Adhesive: Acrylic
Design Printing: No Printing Use: Carton Sealing
Adhesive Type: Pressure Sensitive Adhesive Side: Single Sided
Feature: Heat-Resistant Shape: Customized
High Light:



Greenback Tapes


high temperature tape

3M851 Greenback Printed Circuit Board Tape

Suggested Applications
  • Masking of many printed wiring boards during solder stripping and precious metal plating of fingers
  • Splicing of silicone treated papers


Product Attributes

Adhesion to Stainless 29 oz/in
Adhesion to Stainless (metric) 0.9 kg/25.4mm, 3.3 N/cm
Adhesive Type Silicone/Rubber Blend
Application Circuit Plating Tape
Application Category Protection
Backing Polyester (PET)
Color Translucent Green
Performance Features Low Stretch, No Adhesive Residue
Primary Liner None
Product Form Roll
Product Series 851
Standard Roll Size 144 yd
Standard Roll Size (metric) 132 m
Temperature Range (Celsius) - 40 Degree C to 155 Degree C
Temperature Range (Fahrenheit) - 40 Degree F to 311 Degree F
Tensile Strength at Break 27 lbs/in
Tensile Strength at Break (metric) 368 N/100 mm
Total Tape Thickness without Liner 3.6 mil
Total Tape Thickness without Liner (metric) 0.010 mm
Total Thickness 3.6 mil
Total Thickness (metric) 0.010 mm

3M851 Greenback Printed Circuit Board Tape3M851 Greenback Printed Circuit Board Tape


1)Features and Benefits
  • High strength and durable
  • Clean appearance
  • Ideal for electronics assembly applications
  • Used for thin applications
  • UL 746C listed
  • Easy handling/die cuttable


2)Suggested Applications:
  • Window Bonding
  • LCD / Display and Bezel Bonding


3)Product Description:
3M VHB Tapes provide the convenience and simplicity of a tape fastener and are ideal for use in many interior and exterior bonding applications. In many situations, they can replace rivets, spot welds, liquid adhesives and other permanent fasteners.

These 3M VHB Tapes are made with acrylic foam which is viscoelastic in nature. This gives the foam energy absorbing and stress relaxing properties which provides these tapes with their unique characteristics. The acrylic chemistry provides outstanding durability performance.

These tapes utilize a variety of specific foam, adhesive, color and release liner types to provide each product/family with specific features. These features can include adhesion to specific or a broad range of materials, conformability, high tensile strength, high shear and peel adhesion, resistance to plasticizer migration, and UL746C recognition. All 3M VHB Tapes have excellent durability and excellent solvent and moisture resistance.

Note: All 3M VHB Tapes should be thoroughly evaluated by the end user under actual use conditions with intended substrates to determine whether a specific tape is fit for a particular purpose and suitable for user’s method of application,especially if expected use involves extreme environmental conditions or high dead load stress.
