Home ProductsTape (3M, TESA, NITTO, SONY, KAPTON)

3M9495MP 3M9495B 3M9495FL 200MP

3M9495MP 3M9495B 3M9495FL 200MP

3M9495MP 3M9495B 3M9495FL 200MP

Product Details:

Place of Origin: California, United States
Brand Name: 3M
Model Number: 3M9495MP 3M9495B 3M9495FL 200MP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Rolls
Price: USD 100-800/ Roll
Packaging Details: Standard carton box packing or Shrink Pack or As Customer's Request
Delivery Time: Within 7 working days after received the payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 500 Roll/Rolls per Day
Contact Now
Detailed Product Description
Material: Polyester Adhesive Type: Pressure Sensitive, Modified Acrylic
Adhesive Side: Double Sided Feature: Waterproof
Adhesive: Acrylic Use: Masking
Thickness: 0.13mm

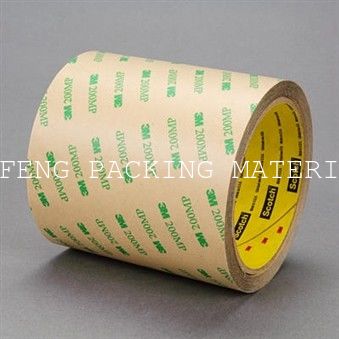

3M9495MP 3M9495B 3M9495FL 200MP Polyester Double Coated Tape
3M™ Double Coated Tape 9495MP with 3M™ Laminating Adhesive 200MP features a thin polyester film for dimensional stability and improved handling during die-cutting and laminating. This tape also provides excellent temperature and chemical resistance.
Features and Benefits
  • Easy handling during slitting and die-cutting
  • Polyester carrier provides dimensional stability
  • Adhesive provides exceptional temperature and chemical resistance and withstands tough application environments


Product Attributes

Application Antenna Bonding, Battery Bonding, Electrical Insulation Bonding, Flex Bonding, Flex Stiffener Bonding, Logo Bonding, Touchpad Bracket Assembly, Wire and Cable Clip Attachment
Application Category Bonding
Backside Adhesive Thickness 2.3 mil
Backside Adhesive Thickness (metric) 0.058 mm
Backside Adhesive Type 200MP Acrylic, Firm Acrylic
Carrier Color Clear
Carrier Material Polyester
Carrier Thickness 0.50 mil
Carrier Thickness (metric) 0.013 mm
Faceside Adhesive Thickness 2.9 mil
Faceside Adhesive Thickness (metric) 0.074 mm
Faceside Adhesive Type 200MP Acrylic, Firm Acrylic
Liner Color Tan with 3M 200MP Print
Liner Thickness 4.0 Milli-inch (mil)
Liner Thickness (metric) 0.10 mm
Liner Type Polycoated Kraft
Operating Temperature Range (Celsius) Long Term (Days-Weeks) 121 Degrees C
Operating Temperature Range (Celsius) Short Term (Minutes-Hours) 149 Degrees C
Product Series 9495MP
Substrate Glass, HSE Plastics, Metals
Total Tape Thickness without Liner 5.7 mil
Total Tape Thickness without Liner (metric) 0.14 mm

3M9495MP 3M9495B 3M9495FL 200MP3M9495MP 3M9495B 3M9495FL 200MP
