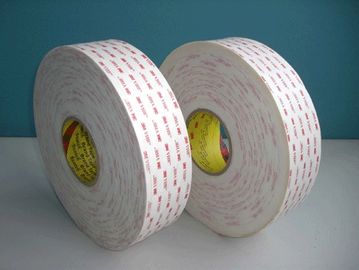

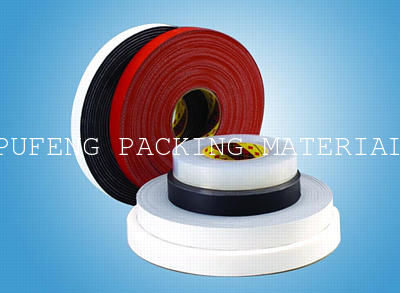

3M 4936 Similar VHB Pressure Sensitive Sealing Tapes

3M 4936 Similar VHB Pressure Sensitive Sealing Tapes

    • 3M 4936 Similar VHB Pressure Sensitive Sealing Tapes
    • 3M 4936 Similar VHB Pressure Sensitive Sealing Tapes
  • 3M 4936 Similar VHB Pressure Sensitive Sealing Tapes

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: 3m
    Model Number: 3M4936

    Payment & Shipping Terms:

    Price: US $0.1 - 0.5 / Piece
    Packaging Details: Standard package.
    Delivery Time: Within 7 working days after received the payment
    Payment Terms: T/T; WESTERN UNION; PAYPAL
    Supply Ability: 100000 Piece/Pieces per Day
    Minimum Order Quantity: 10000 Piece/Pieces
    Contact Now
    Detailed Product Description
    Material: VHB Adhesive: Acrylic
    Design Printing: No Printing Adhesive Type: Pressure Sensitive
    Thickness: 0.25mm Adhesive Side: Double Sided
    Feature: Freon-Proof
    High Light:



    3M tape 4936


    High Quality 3m4936

    3M 4936 Similar VHB Pressure Sensitive Sealing Tapes

    Product Attributes:

    Adhesion to HSE High
    Adhesion to LSE Low
    Adhesive Type General Purpose Acrylic
    Application Antenna Bonding, Battery Bonding, Bezel Bonding, Case Assembly, Cover Lens Bonding, Display Bonding, Electronic Component Bonding, Logo Bonding, Wire and Cable Clip Attachment
    Application Category Bonding
    Brand VHB
    Foam Conformability Firm
    Foam Type Closed Cell Acrylic
    Liner Color White, White with Red 3M VHB Print
    Liner Thickness 3.0 Milli-inch (mil)
    Liner Type Densified Kraft Paper
    Product Form Roll
    Product Series 4936
    Solvent Resistance High
    Substrate HSE (Glass, Metal)
    Tape Color White
    Total Tape Thickness without Liner 10.0 mil
    Total Tape Thickness without Liner (metric) 0.25

    3M 4936 Similar VHB Pressure Sensitive Sealing Tapes3M 4936 Similar VHB Pressure Sensitive Sealing Tapes

    1)Features and Benefits
    • High strength and durable
    • Clean appearance
    • Ideal for electronics assembly applications
    • Used for thin applications
    • UL 746C listed
    • Easy handling/die cuttable


    2)Suggested Applications:
    • Window Bonding
    • LCD / Display and Bezel Bonding


    3)Product Description:
    3M VHB Tapes provide the convenience and simplicity of a tape fastener and are ideal for use in many interior and
    exterior bonding applications. In many situations, they can replace rivets, spot welds, liquid adhesives and other permanent fasteners.

    These 3M VHB Tapes are made with acrylic foam which is viscoelastic in nature. This gives the foam energy absorbing
    and stress relaxing properties which provides these tapes with their unique characteristics. The acrylic chemistry provides outstanding durability performance.

    These tapes utilize a variety of specific foam, adhesive, color and release liner types to provide each product/family with
    specific features. These features can include adhesion to specific or a broad range of materials, conformability, high tensile strength, high shear and peel adhesion, resistance to plasticizer migration, and UL746C recognition. All 3M VHB Tapes have excellent durability and excellent solvent and moisture resistance.

    Note: All 3M VHB Tapes should be thoroughly evaluated by the end user under actual use conditions with intended
    substrates to determine whether a specific tape is fit for a particular purpose and suitable for user’s method of application,especially if expected use involves extreme environmental conditions or high dead load stress.
