Place of Origin: | Shenzhen, China (Mainland) |
Brand Name: | PF |
Certification: | ROHS |
Model Number: | PF-0055 |
Minimum Order Quantity: | 50 Square meters |
---|---|
Price: | USD 2.5~3.5 / Square meter |
Packaging Details: | rolls in shrinkage packing, and put in ctns., and then pack in pallets. |
Delivery Time: | 3~7 working days |
Payment Terms: | TT,WESTERN UNION,PAYPAL |
Supply Ability: | 10000000 Square meters / week |
Type: | Insulation Tape | Material: | Polyimide Film |
---|---|---|---|
Application: | High Temperature | Rated Voltage: | 6kv |
Tensile Strength: | 140N | Adhesive: | Silicone |
Thinkness: | 0.055mm | Color: | Amber |
Adhesion Strength: | 6N | Temperature Resistance: | 260C |

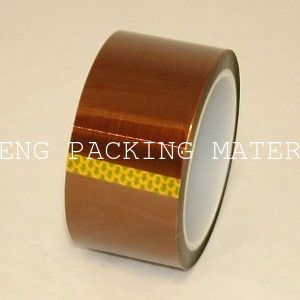

polyimide tape / Kapton Tape:
1) Material: polyimide film
2) Imported organic silicon pressure - sensitive adhesiveis introduce.
3) High temperature resistant
4) Acid and alkaline resistant
5) Solvent resistant
6) Electrical insulation (Grade H)
7) Radiation protection
8) Applicable for the protection of PCB gold finger during the wave
soldering under high temperature, high-class electricals and motor insulation
and Li batteries,fixation,etc.
Items |
Datas |
Backing |
Polyimide film |
Adhesion |
Silicone |
Color |
Amber |
Thickness (mm) |
0.06 |
Length (m) |
33M |
Tensile Strength (N/25mm) |
≥140 |
Elongation (%) |
≥40 |
Breakdown strength (N/25mm) |
≥150 |
Voltage resistance (KV) |
6 |
Adhesion (N/25mm) |
6 |
